Home & Office Power

Designed as independent micro-grid to provide electric power for homes and offices.

Home & Office Power Systems

COMP HC 1500 | COMP AC 200P | COMP HC 8000 | COMP HERCULES HC 12050 | COMP HC 30

COMP Power home and office power systems are designed as independent micro-grid to provide reliable electric power for homes, offices, schools, laboratory equipments, banks, ATMs, bill boards, farms, telecom base stations etc. to name a few, that have no or weak grid connection.
The systems can work both off-grid / on-grid modus to power the loads. They automatically store power in the Lithium batteries from solar panels, grid or fuel generators and thanks to the inbuilt UPS, seamlessly powers the loads when the external power is not available.

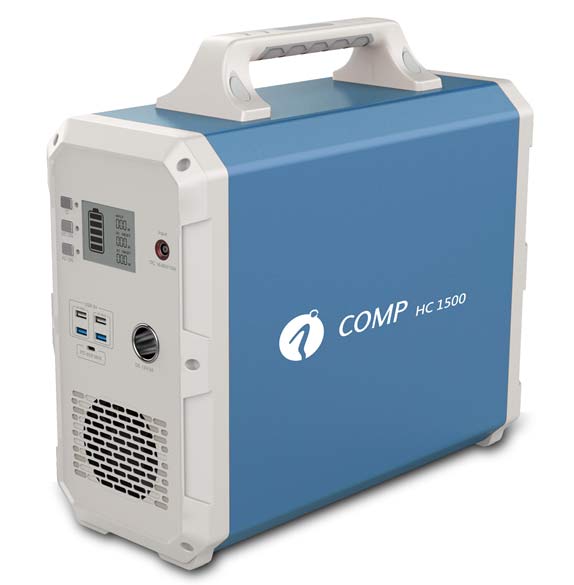

COMP HC 1500

The Mobile power system is portable, compact and come equipped with lithium batteries, BMS, charge controllers,
 powerful inverter, multiple AC and DC output ports. Solar panels are optional.

Application:

Homes, apartments, camps, emergency units, schools, universities, churches, clinics, hospitals, etc.

Features

  • Battery capacity 1500Wh
  • Powerful inverter 1000W
  • Weight 17kg
  • Fast charging with solar, grid or car battery
  • LCD panel showing state of charge, AC and DC power input and output, fault report and solution
  • 2x AC output 230V
  • 4x USB output, 5V/2.1A/1,0A
  • 1x USB-C 60W
  • 1x 12V 10A
Comp HC 1500 - Mobile Power Systems

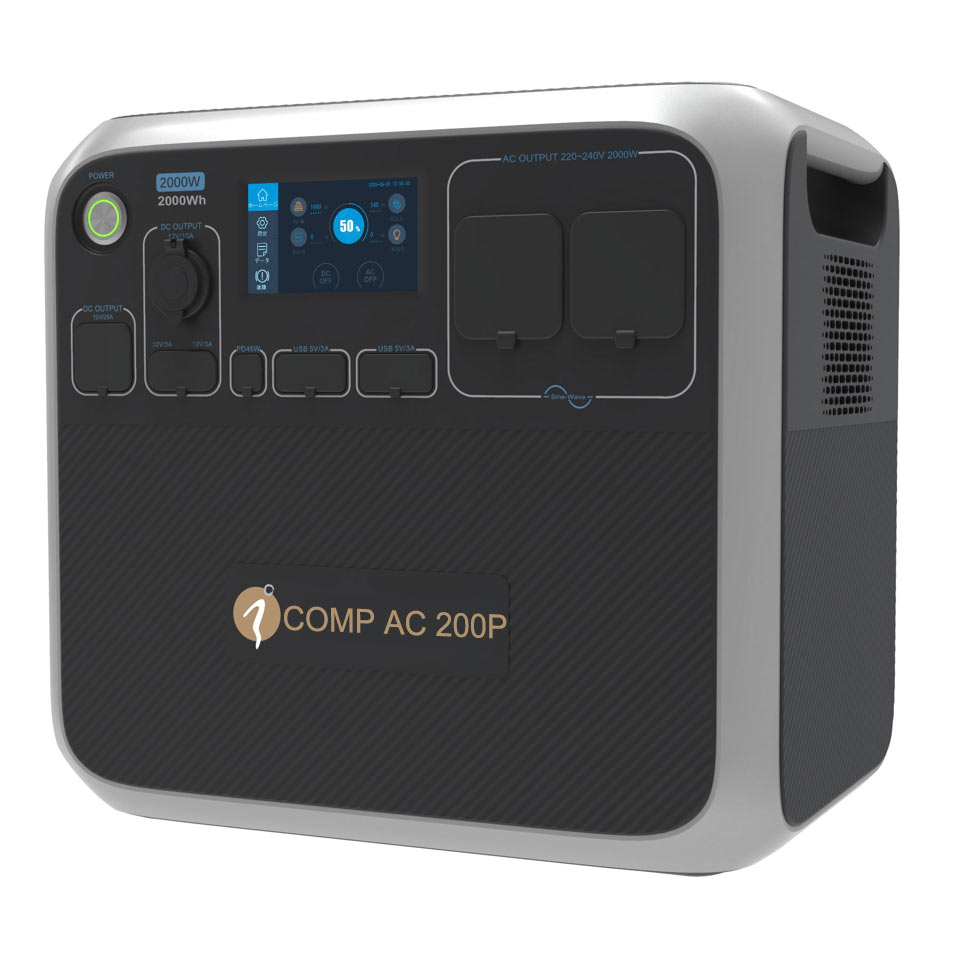

COMP AC 200P

Part No.: 14050510

COMP AC 200P is a powerful mobile and stationary All-in-One Power storage system.
With its powerful inverter of 2000w continous output and a surge capacity of 4800W it can power most of your electrical devices and equipments.

Home/office applications:

Fridge, TV, micro wave oven, Koffee machine, Hair dryer, Fans,
lights, computer, Labtops, phones, Hospilals and clinics. Banks, ATM.
Charging of electrical cars and bicycles.

Mobile/outdoor applications:

Power electrical tools in outdoor work place, Churches, Parties, weddings,
music systems and speakes, camping , construction tools.

Comp AC 200P- Home & Office Power

Features

  • 2000W inverter continous power output.
  • 4800W surge capacity
  • 2000Wh powerful and long lasting lithium Phoshate storage battery.
  • Fast charging with 700W solar panels in 3 hrs or with grid in 4hr. System can be charged in about 2,5hr using solar and grid charging simultainously.
  • Multiple AC and DC loads can be powered simultainously .
  • Output USB: 4x USB-A 5V/3A; 1 x 60W USB-C PD Port; 2x wireless charging.
  • Output DC: 2x 12V/3A (5521); 1x 12V/10A; 1x 12V/24A
  • Output AC: 2x AC 230V. Total 2000W continuous load.
  • Solar input: max. 700W solar panels.
  • MMPT voltage input range 35V-150V (max. 12A)
  • AC input voltage: 100 – 240V AC;
  • Max. charging power 500W via adapter. Max. charginging voltage 58.8VDC.
  • Dimension: 420 x 280 x 386mm.
  • Net weight: 27,5Kg
  • Working temperature: 0° – 40°C
  • Display panel with detailed system operational information.

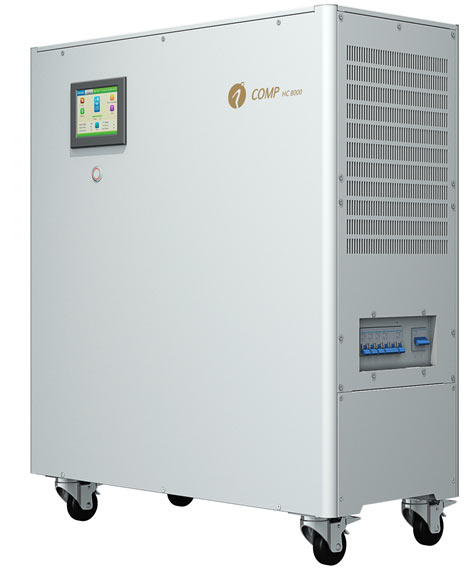

COMP HC 8000

Suitable to power a 4 bedroom house or office, except A/C

Features

  • All in one Lithium battery storage system
  • Battery capacity 8000Wh / 58,5V/156Ah
  • Off grid and on grid function
  • Inverter output 3000W/230V/50Hz
  • AC input voltage range 196 -264V
  • AC frequency input range 45 – 55 Hz
  • AC input charge power 3000W
  • PV input charge power 3000W
  • UPS Function
  • MPPT input voltage range 75 – 140V
  • Working temperature range 0° – 45°C
  • 5Yr battery warranty
  • Remote mobile monitoring
  • Dimensions WxDxH 869 x 350 x 912mm
  • Maintenance Bypass
COMP HC 8000

COMP HERCULES HC 12050

Part No.: 12050111

Suitable to power a big home or office including 3 2HP A/C

ITD-SPH Series

Certificate

Features

  • All-in-One scalable lithium battery energy storage system with UPS
  • Standard Lithium battery capacity 20.48KWh/400 Ah
  • Each battery module capacity 5,12KWh
  • Maximum stackable battery modules in parallel 8 units.
  • Battery type LiFePO4
  • Battery cycle stability > 6000 cycles
  • Life span over 10yr
  • 12 KW offgrid solar inverter with transformer
  • Output voltage / frequency 230V / 50Hz
  • Maximum PV input power 7KWp
  • MPPT input voltage range 60 – 145V
  • Online UPS function
  • Operational temperature -10°C to 40°C
  • Cooling method forced air cooling
  • Certifications: IEC 62619, UN 38.3, CE, EMC
  • Warranty 5yr (10yr optional)

COMP HC 30

Suitable to power a big house or office building including 3 2HP A/C

Features

  • 3-Phase On-/ Offgrid Micro grid system
  • 2 Cabinets: Battery and Inverter
  • Battery capacity 32KWh /52V /615Ah
  • Inverter output power 15KW
  • Output voltage 230/400V 3-Phase/N/PE
  • UPS Function
  • AC Input frequency 45 – 55Hz
  • AC charge power 7500W
  • PV input 16000W (4 x 4000KWp)
  • MPPT input voltage range 70 – 140V
  • Working Temperature range 0 – 45°C
  • Remote mobile monitoring
  • 5yr Battery warranty
  • Battery cabinet HxWxD 1360x800x645 mm
  • Inverter cabinet HxWxD 1360x800x645 mm
COMP HC 30
