Home & Office Power
Designed as independent micro-grid to provide electric power for homes and offices.
Home & Office Power Systems
COMP HC 1500 | COMP HC 4000 | COMP HC 8000 | COMP HC 12050 | COMP HC 30
COMP Power home and office power systems are designed as independent micro-grid to provide reliable electric power for homes, offices, schools, laboratory equipments, banks, ATMs, bill boards, farms, telecom base stations etc. to name a few, that have no or weak grid connection.
The systems can work both off-grid / on-grid modus to power the loads. They automatically store power in the Lithium batteries from solar panels, grid or fuel generators and thanks to the inbuilt UPS, seamlessly powers the loads when the external power is not available.

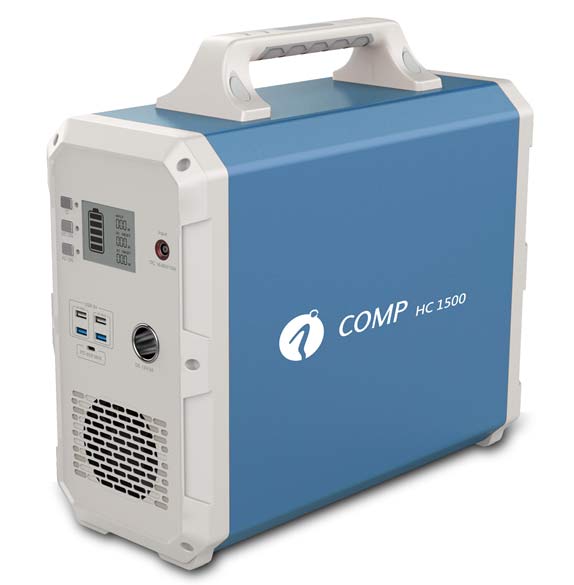

COMP HC 1500
The Mobile power system is portable, compact and come equipped with lithium batteries, BMS, charge controllers,
powerful inverter, multiple AC and DC output ports. Solar panels are optional.
Application:
Features
- Battery capacity 1500Wh
- Powerful inverter 1000W
- Weight 17kg
- Fast charging with solar, grid or car battery
- LCD panel showing state of charge, AC and DC power input and output, fault report and solution
- 2x AC output 230V
- 4x USB output, 5V/2.1A/1,0A
- 1x USB-C 60W
- 1x 12V 10A
COMP HC 4000
Compact power house suitable to power a 3 bedroom house or office
Features
All-in-one Lithium battery storage system
- Battery capacity 4000Wh, Voltage 52V
- Inverter output power 2000W / 230V
- AC charge power 600W;
- AC input voltage range 88 – 264V
- AC input frequency range: 45 -55Hz
- PV input power 2000W
- MPPT input voltage range 75 – 140Vdc
- UPS Function
- Off Grid operation
- Display for all system working functions
- Working Temp. Range 0°C – 45°C
- 5yr Battery warranty
- Dimensions DXWXH: 580 x 300 x 600 mm

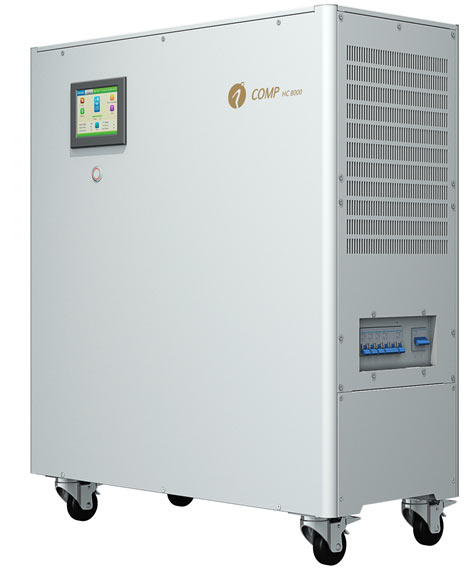

COMP HC 8000
Suitable to power a 4 bedroom house or office, except A/C
Features
- All in one Lithium battery storage system
- Battery capacity 8000Wh / 58,5V/156Ah
- Off grid and on grid function
- Inverter output 3000W/230V/50Hz
- AC input voltage range 196 -264V
- AC frequency input range 45 – 55 Hz
- AC input charge power 3000W
- PV input charge power 3000W
- UPS Function
- MPPT input voltage range 75 – 140V
- Working temperature range 0° – 45°C
- 5Yr battery warranty
- Remote mobile monitoring
- Dimensions WxDxH 869 x 350 x 912mm
- Maintenance Bypass
COMP HC 12050
Suitable to power a big home or office including 1 2HP A/C
Features
- All in one Lithium battery storage system
- Battery capacity 1200Wh / 58,5V/234Ah
- Off grid and on grid function
- Inverter output 5000W/230V/50Hz
- AC input voltage range 196 -264V
- AC frequency input range 45 – 55 Hz
- AC input charge power 5000W
- PV input charge power 5400W
- UPS Function
- MPPT input voltage range 75 – 140V
- Working temperature range 0° – 45°C
- 5Yr battery warranty
- Remote mobile monitoring
- Dimensions WxDxH 869 x 350 x 912mm
- Maintenance Bypass
COMP HC 30
Suitable to power a big house or office building including 3x 2HP A/C
Features
- 3-Phase On-/ Offgrid Micro grid system
- 2 Cabinets: Battery and Inverter
- Battery capacity 32KWh /52V /615Ah
- Inverter output power 15KW
- Output voltage 230/400V 3-Phase/N/PE
- UPS Function
- AC Input frequency 45 – 55Hz
- AC charge power 7500W
- PV input 16000W (4 x 4000KWp)
- MPPT input voltage range 70 – 140V
- Working Temperature range 0 – 45°C
- Remote mobile monitoring
- 5yr Battery warranty
- Battery cabinet HxWxD 1360x800x645 mm
- Inverter cabinet HxWxD 1360x800x645 mm
